LVSL
Operation of the equipment
several configurations available
We have developed our light curtain in a range of different formats, so that it can be adapted to suit any situation and your needs.
The reel is available in 10-meter and 60/100-meter formats, but can also be adapted to suit your needs.
Depending on your requirements, you can define the number of individual proximity sensors you need, and add any optional equipment for noisy environments and carrying accessories you may require.
Reel 60/100 meters
Reel 10 meters
A proximity sensor
Each staff member wears his or her proximity sensor, which allows them to be individually warned if they get close to the barrier cable.
The sensor sounds (>90db, adjustable volume) and vibrates to signal to the protected wearer that he must adjust his position in relation to the danger zone and encourage him to move away from it.
The signalling distance can be set for each one between 20 and 60 cm, depending on the needs and configurations of each site.

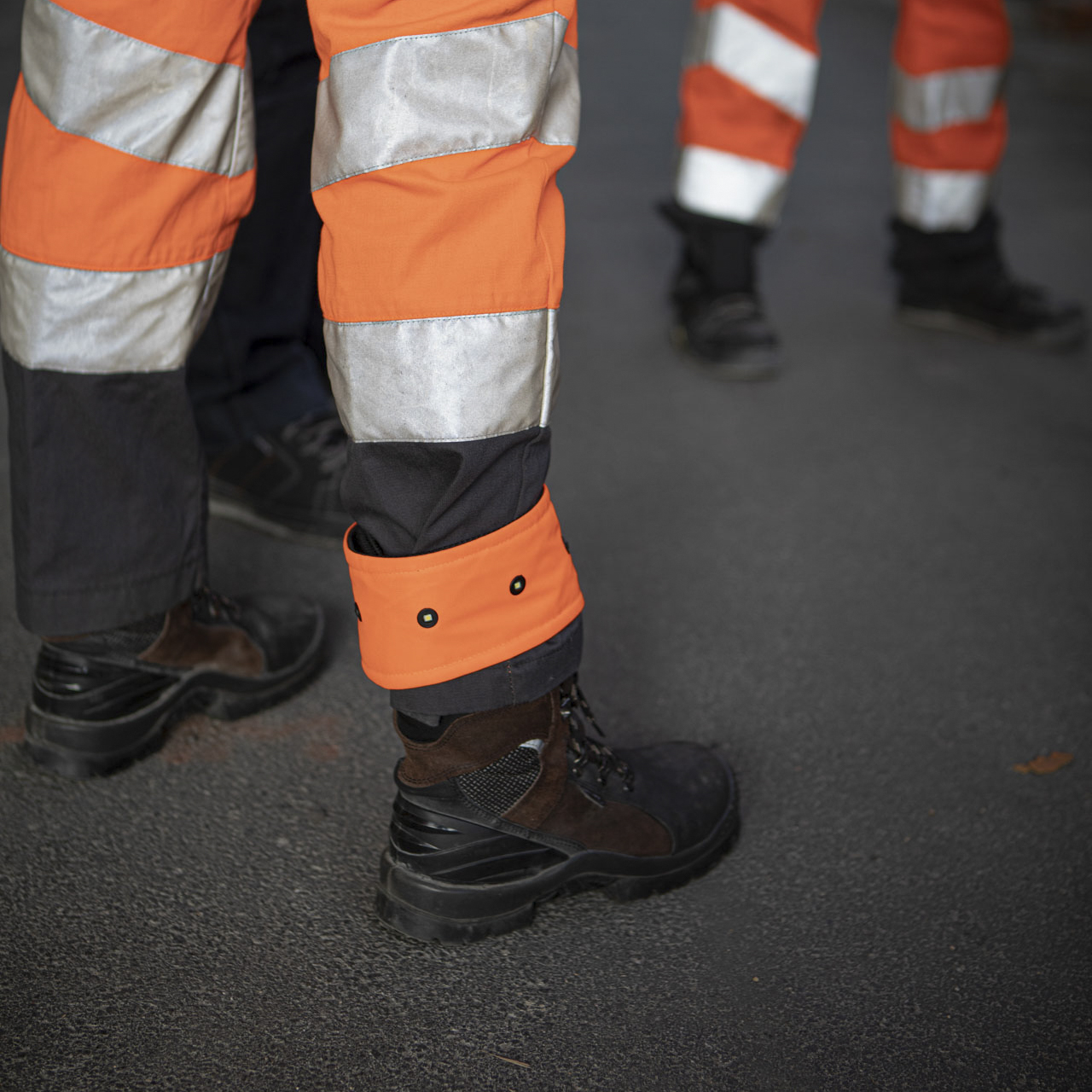

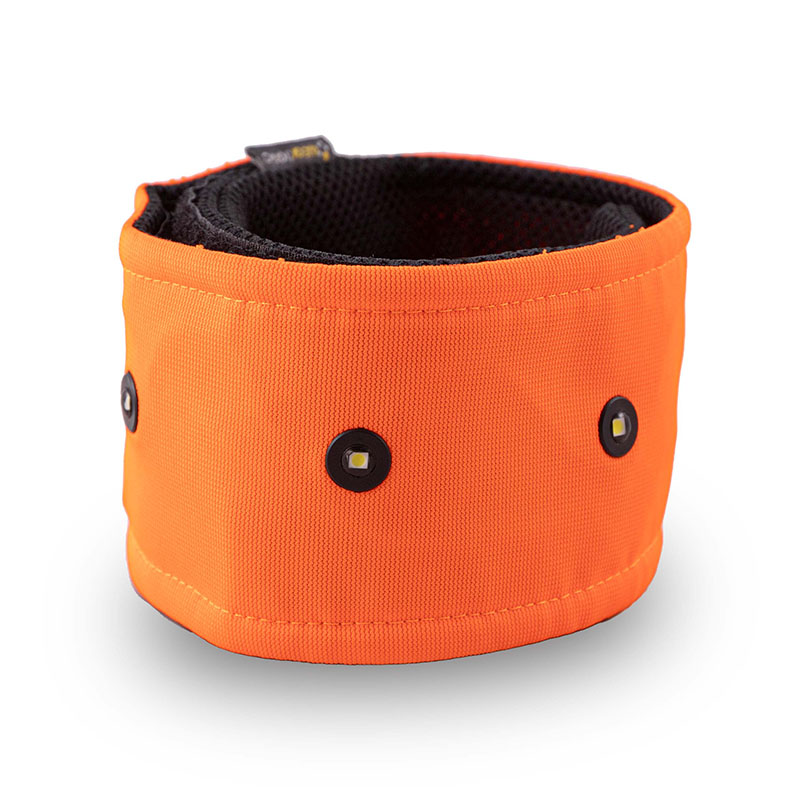

An ankle brace or shoe clip
Safe Innov can supply a choice of overshoe cover or ankle strap, enabling the sensors to be fitted easily and without discomfort.
The ankle strap also incorporates a series of high-power LEDs, providing a clear view of the ground on night work sites, and improving safety during progress (optional power supply unit).
A communicating noise-cancelling headset
In partnership with VOGO, SAFE INNOV offers the
VOKKERO GUARDIAN
as a triple safety equipment for noisy or extended building sites.
Thanks to this anti-noise communicating headset, the wearers benefit from a noise filter attenuating all the surrounding noise pollution, while being able to communicate with each other very naturally over a distance of more than 1200 meters and with a lot of comfort (permanent full duplex communication, unlike walkie-talkies, no manipulation is necessary to speak).
And of course the signal from the proximity sensor is carried into the helmet so that the wearer also has the protection of the LVSL barrier cable.

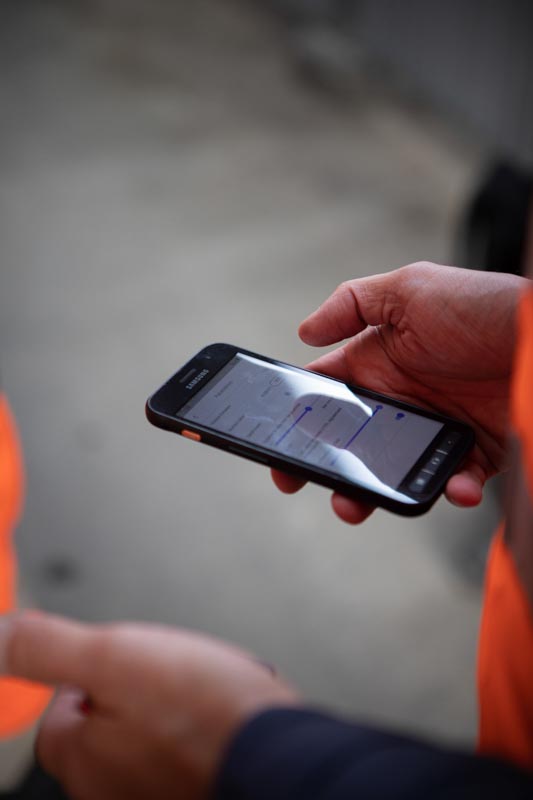

EASILY PROGRAMMABLE WITH A DEDICATED APPLICATION
Once set, configurations are secure and the equipment can be deployed without the need for reprogramming each time it is used.
Once the reel is deployed, it will protect each of the personnel thanks to the individual sensors that signal proximity to the barrier cable

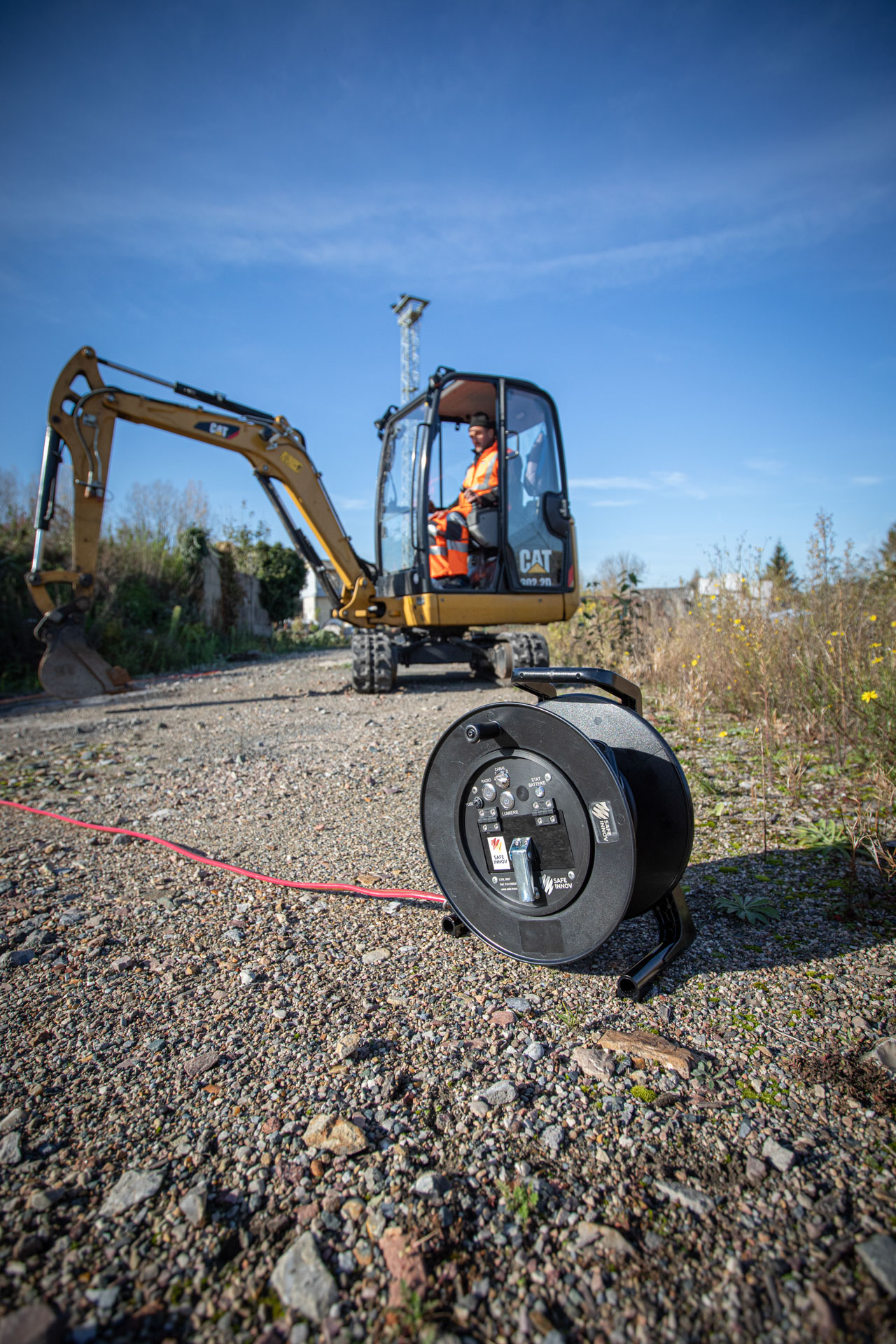

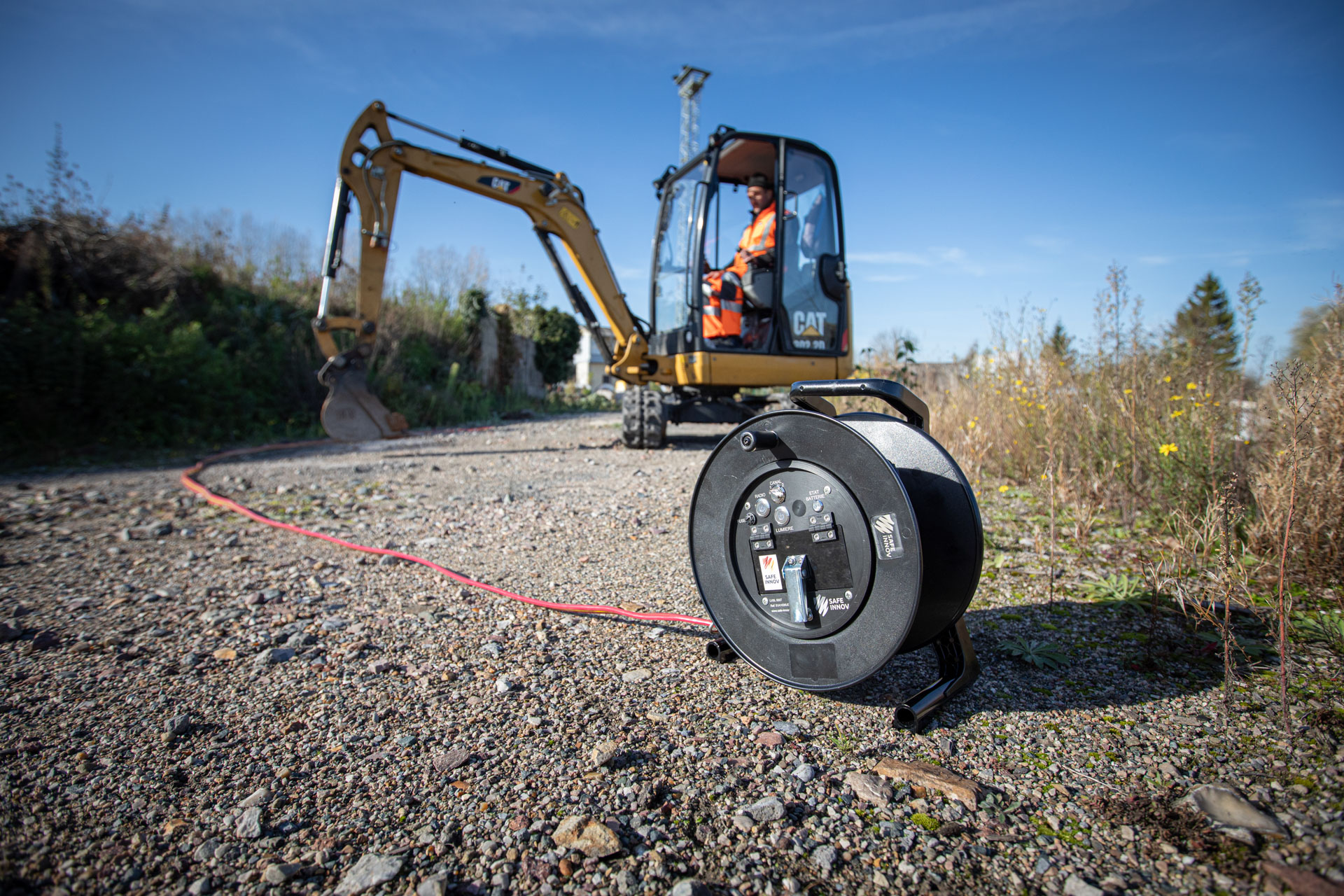

Easily transportable
The barrier cable itself is installed with a reel. Available in several cable lengths according to the configuration of the teams and typical sites, the reels systematically integrate a battery allowing to work in complete autonomy on the field.
Housing is also available to directly load the sensors if necessary.
Examples of configurations :
The reel ” LVSL 10 ” embeds 10 meters of barrier cable and is directly portable (+/-7kg), allowing to easily protect 2 or 3 people in a small safety bubble.

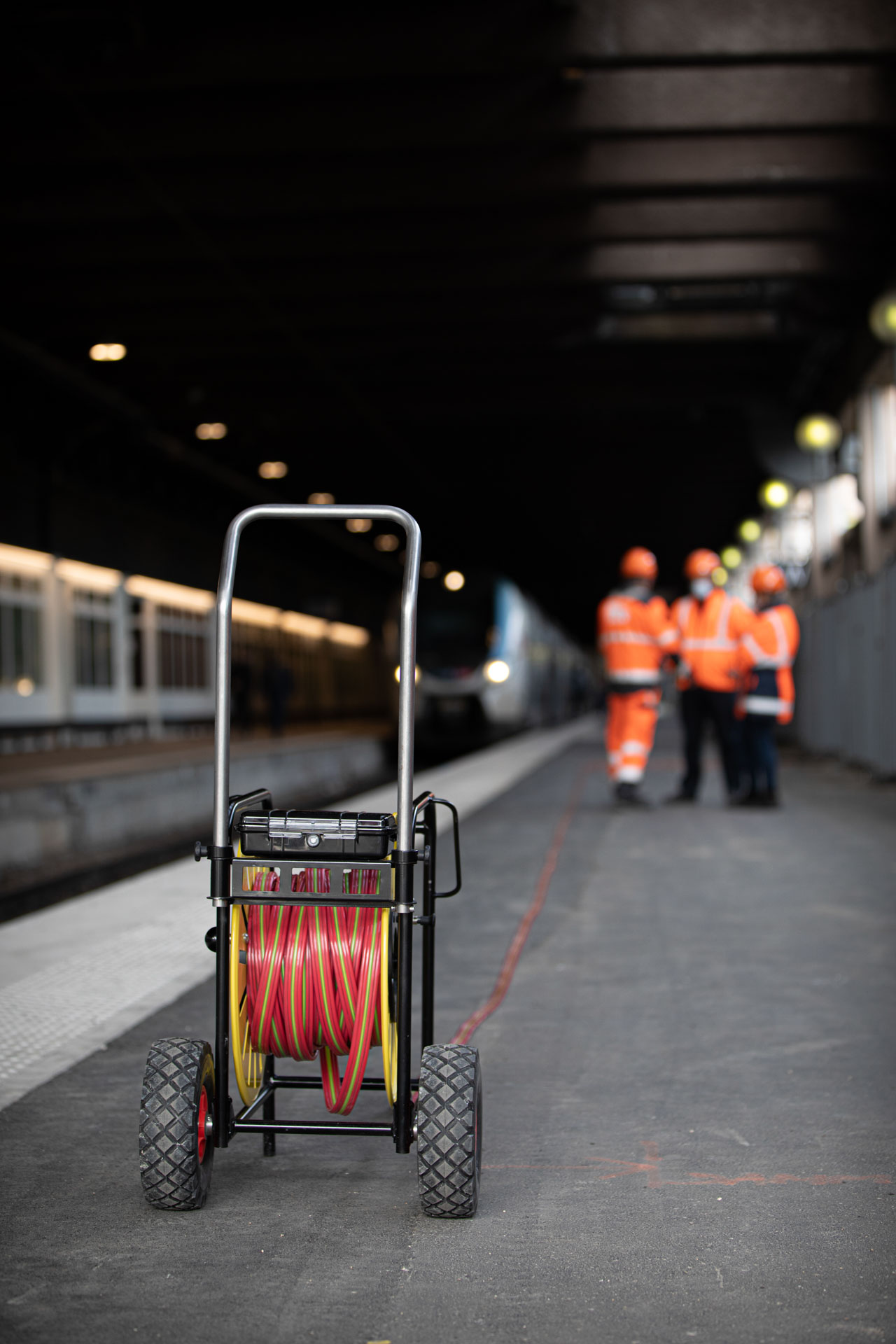

The “LVSL 60” reel carries 60 meters of barrier cable on a small cart and weighs 32kg, which can be moved easily thanks to the all-terrain wheels fitted.
Robust and waterproof
The reel, sensors and helmets are waterproof and resistant, and the barrier cable itself is resistant to abrasion, wind and even rotofil passes if necessary.
Construction machinery and other vehicles can also drive on it.
In the event of breakage despite this design, a fault signal is immediately sent by all the sensors, and a rapid repair kit is supplied, enabling work to be resumed in complete safety in just a few minutes.
Quick installation
Each employee can then perform an individual function test by testing his or her proximity signal, and then start work in complete safety.
It’s as quick and easy as that: in less than 10 minutes, everything is in place and the work can begin.
suitable for all kinds of dangerous situations
we’re good!
made in france
Not only imagined, designed and patented in France, but also entirely manufactured by local companies.
The various components are sourced and then fully assembled and programmed in France, for the electronics, mechanics and plastics used.
We are also at your side for any technical question, specific adaptation or advice of use if you feel the need.
